24 Cue Fireworks Firing System EMB01-24R

24 Cue Remote Wireless Fireworks Firing System EMB01-24R

0.0 (0 Reviews)

12 Sold

$199.00

Received successfully

Coupon Code

1/1

Product Information：

The video of EMB01 series fireworks firing system: https://youtu.be/B2KMj5uTIh4 .
Four Fire modes: Dividual Fire, Sequential Fire, Salvo Fire, Step Fire.
Each receiver is programmable, it learns the code of the transmitter with the button "Learn", if the receiver or the transmitter has any problem, it can be replaced with another.
One transmitter can control 48 receivers to the maximum while Sequential Fire or Step Fire, you can choose how many receivers to be used.

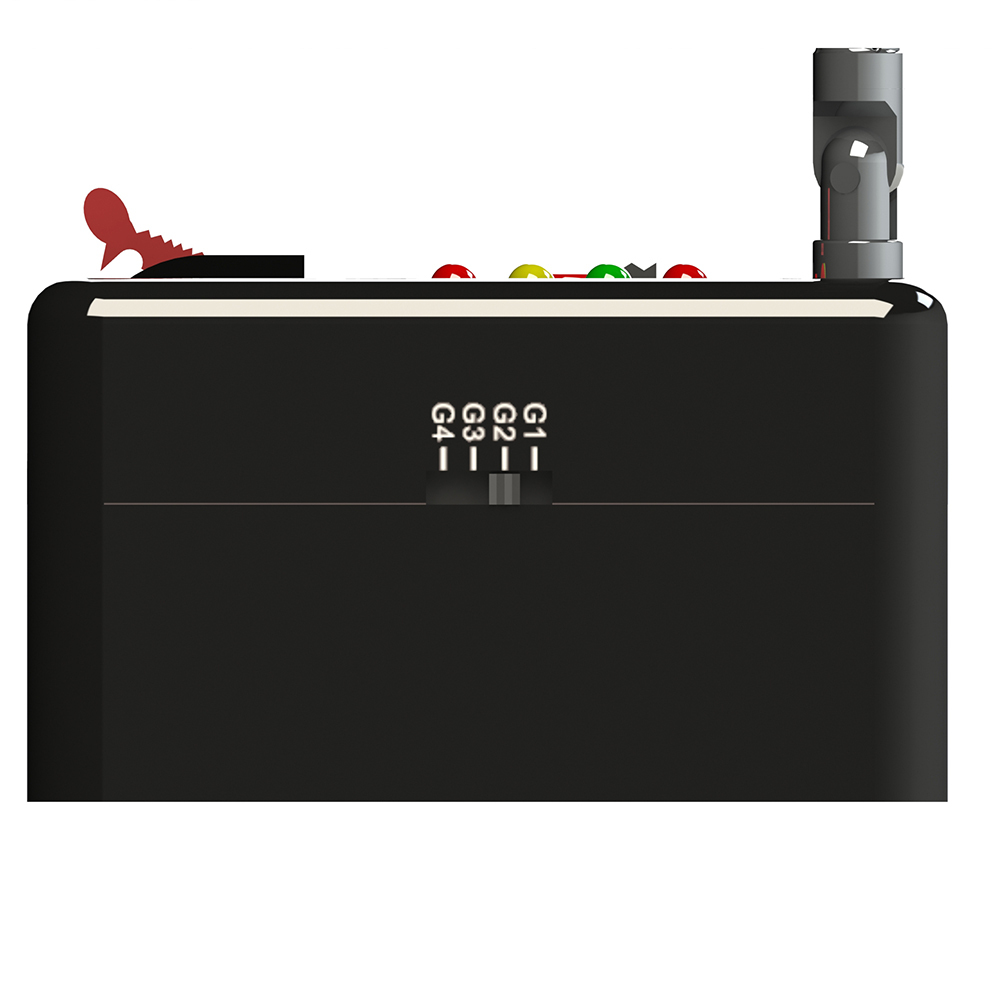

The receiver is programmable, it learns the code of the transmitter to number the receivers in sequence. And they can be divided into 4 groups, there are 12 receivers in each group. So it can be 48 sequence number while Sequential Fire or Step Fire.
Range: 1000m
Cue: 24
Frequency: OOK, 433MHz

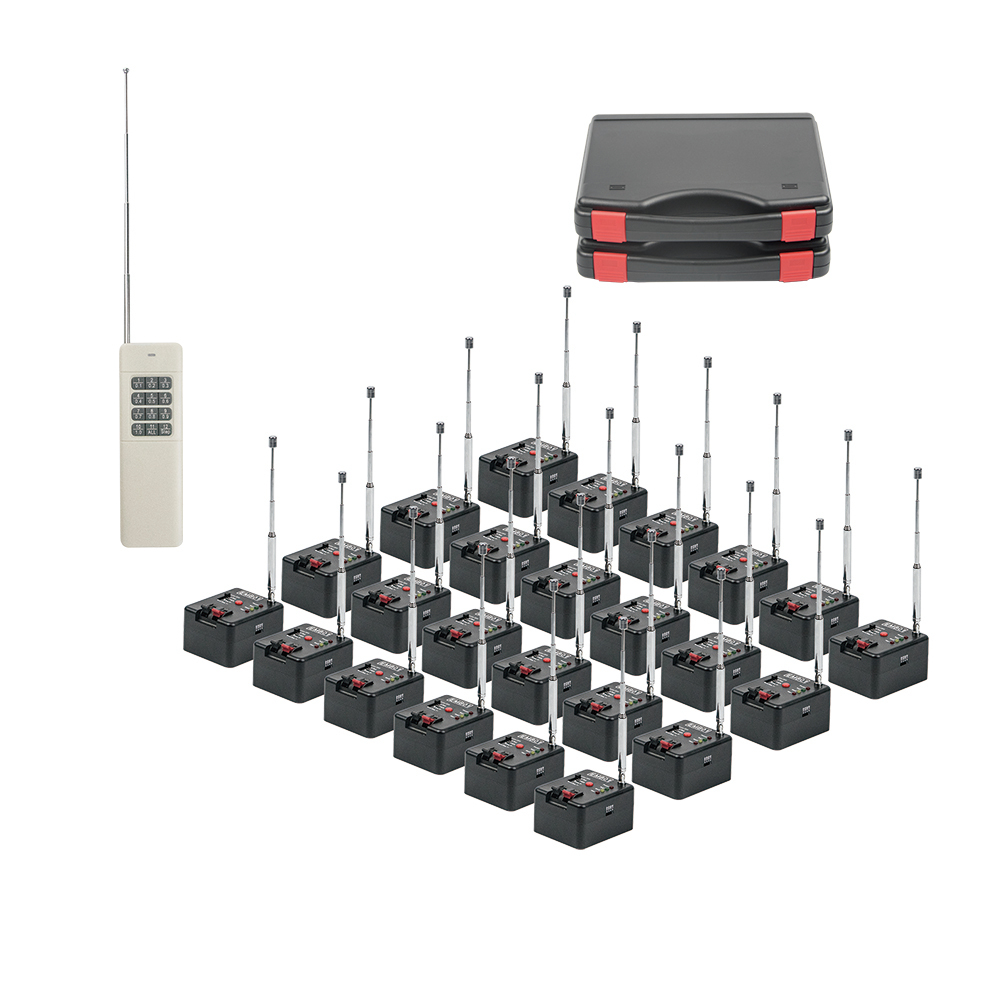

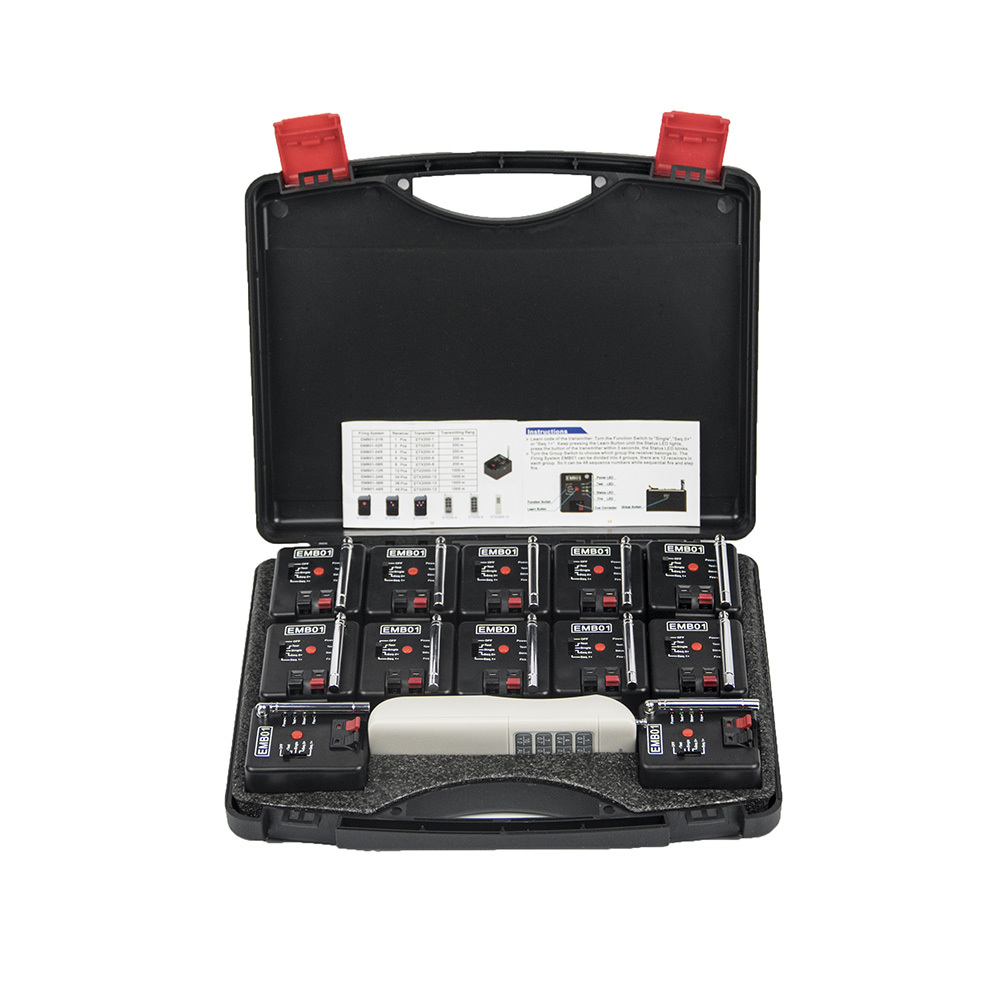

Included in the firing system: EMB01 receiver x 24, ETX2000-12 transmitter x 2, carry case x 2, user's manual x 1.

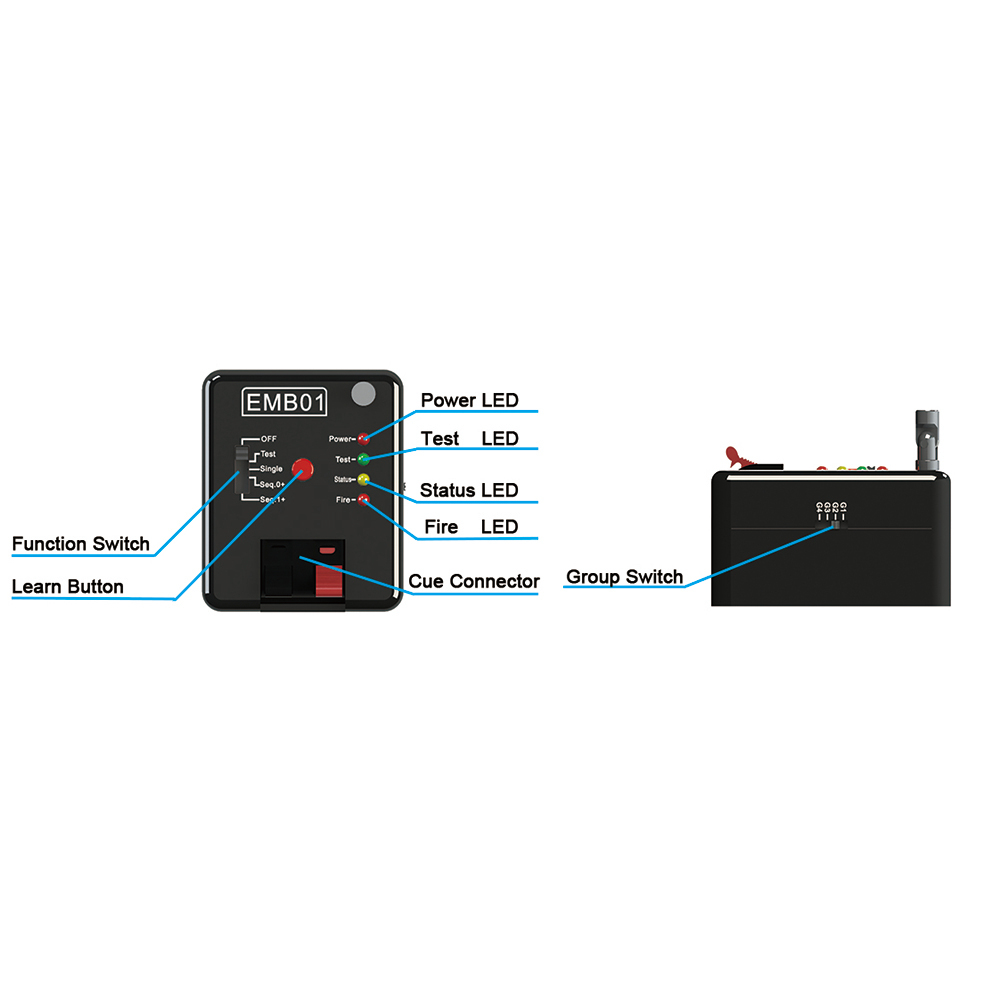

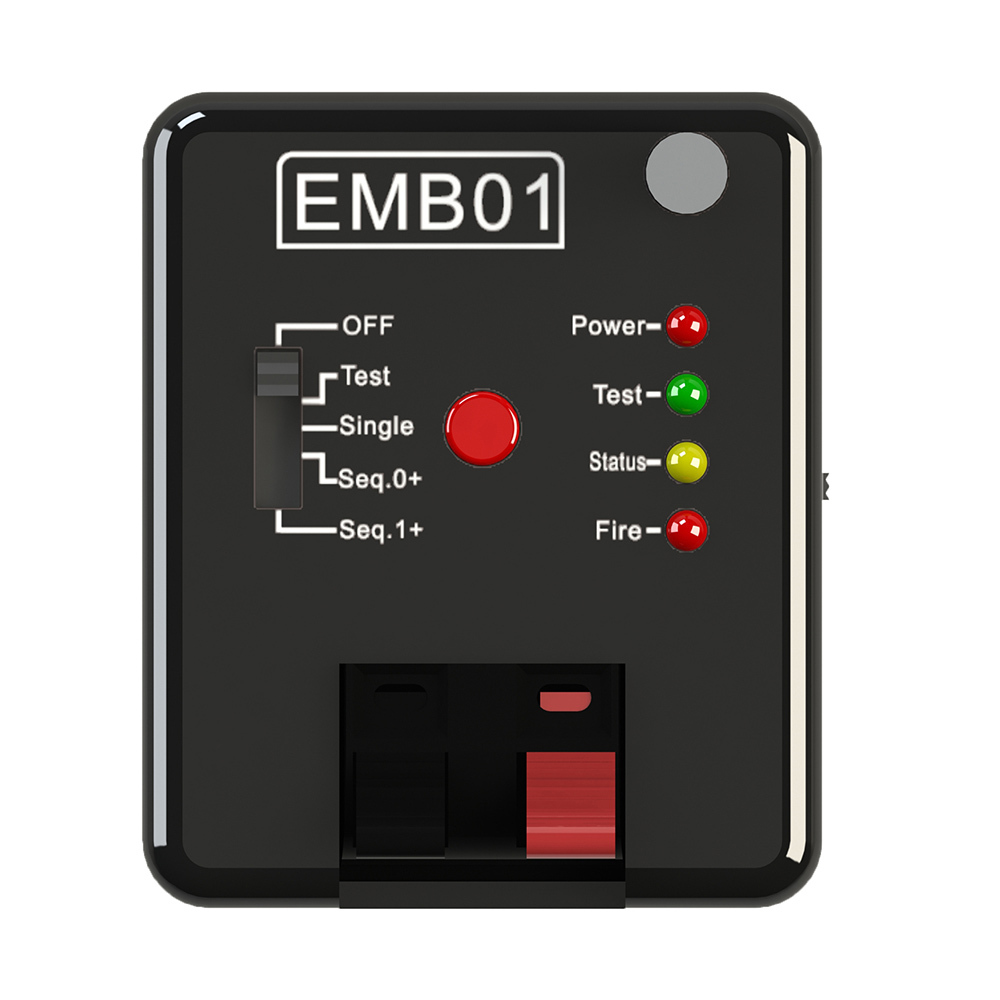

Receiver Feature：

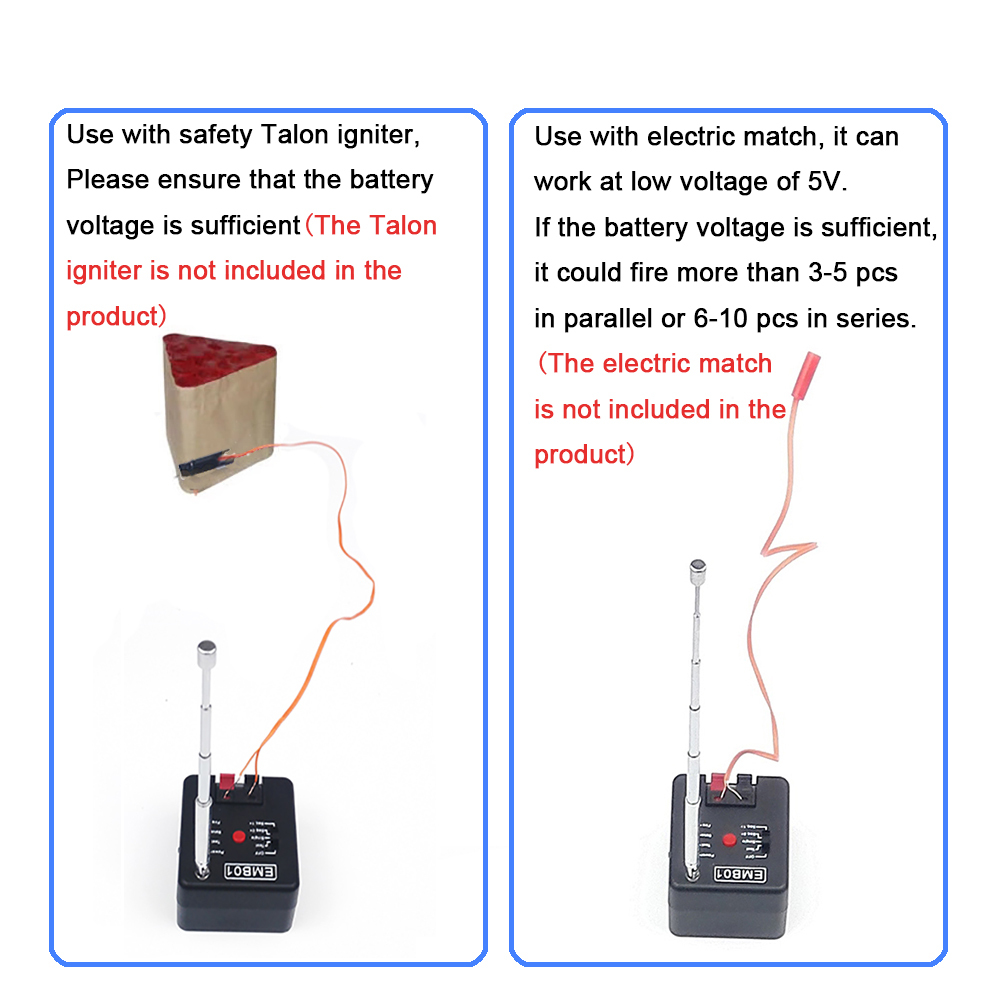

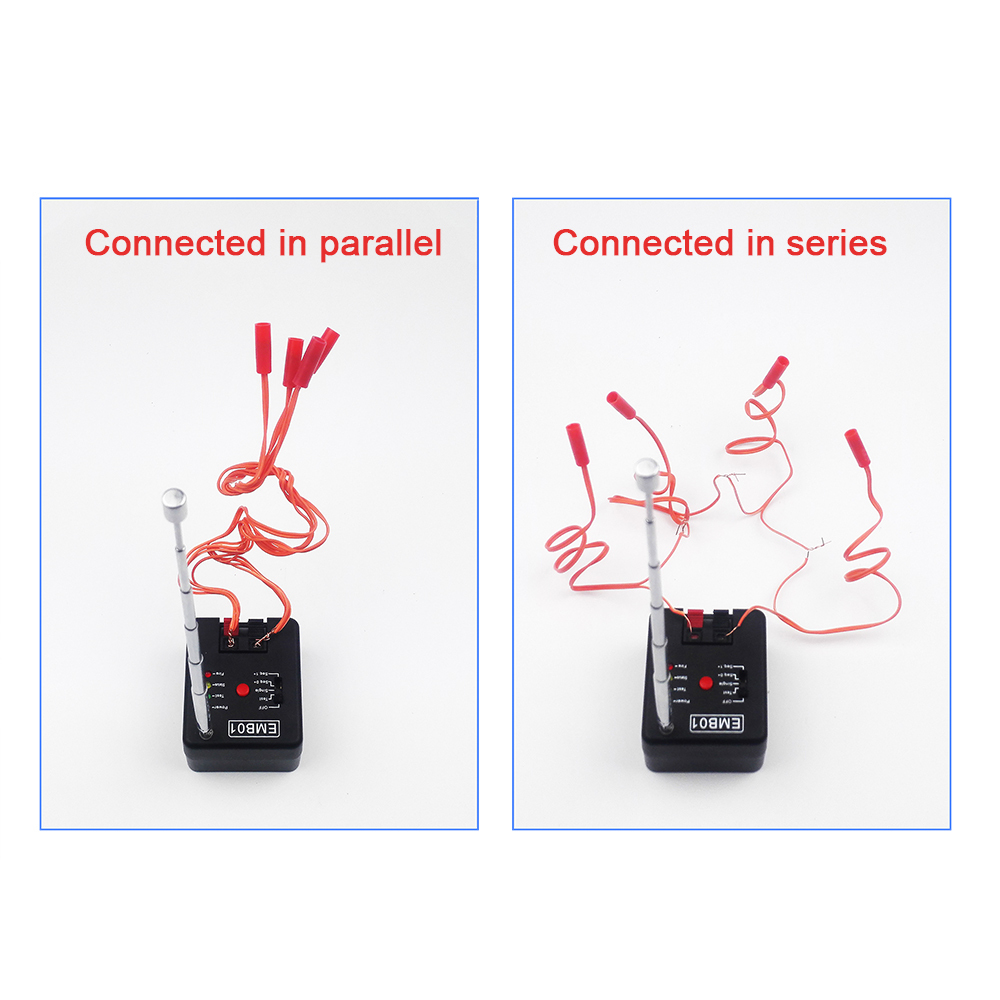

Each receiver has one cue, each cue can fire 3-5 pcs standard igniters in parallel or 6-10 pcs standard igniters in series.
Each receiver is programmable, it learns the code of the transmitter with the button "learn", if the receiver or the transmitter has any problem, it can be replaced with another.
The receiver has four fire modes: Single(Dividual) Fire, Sequential Fire, Salvo Fire and Step Fire

Single mode: Fire one receiver according to the signal of the transmitter.

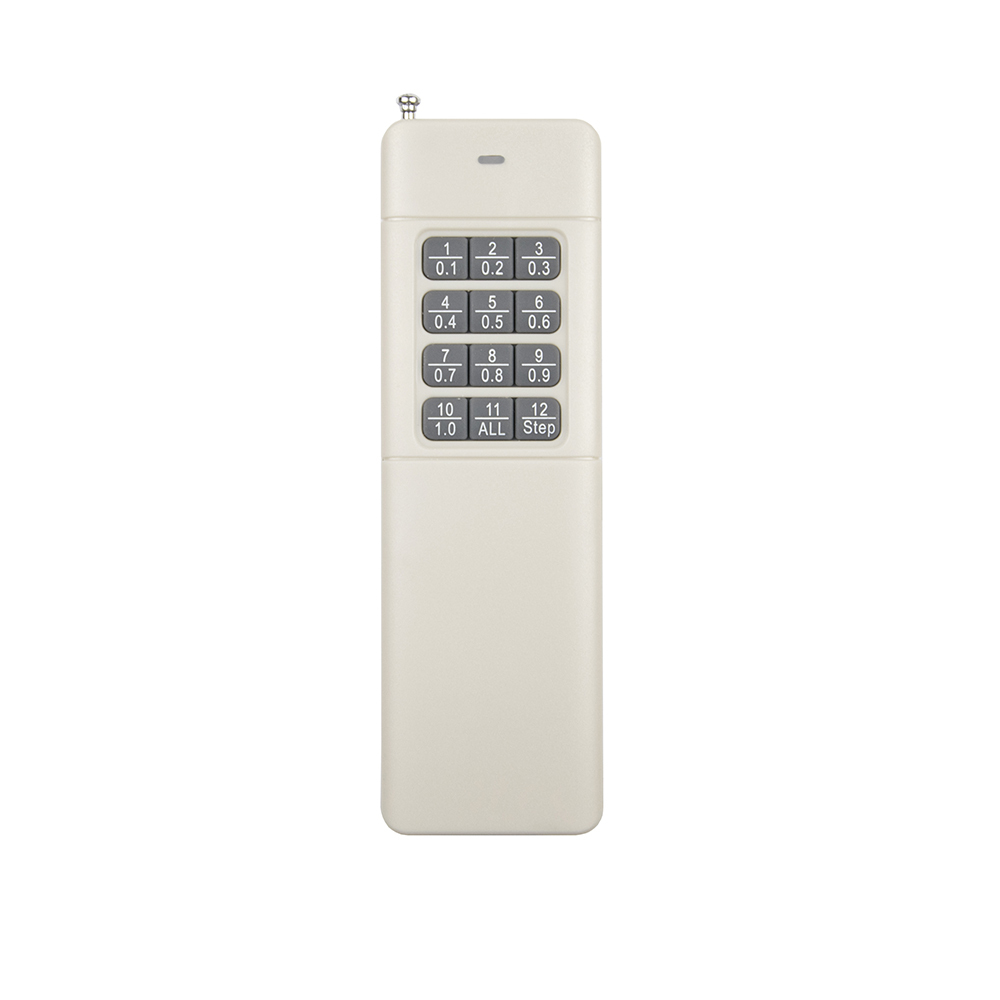

Sequential Fire: Press the "0.1-1.0" button of the transmitter, the receivers will fire at a identical time interval 0.1 Sec.-2.0 Sec.
Salvo Fire(Must use the transmitter ETX2000-12): Press the "All" button of the transmitter to fire all receivers at the same time.
Step Fire: Press the "Step" button of the transmitter to fire from the No.1 receiver of Group 1 to the No.12 receiver of Group 4.

Test Function: The TEST LED will be lit if the igniter/e-match is connecting well.
Short protection: The receiver can't be damaged by a short in cue
Low voltage alarm.

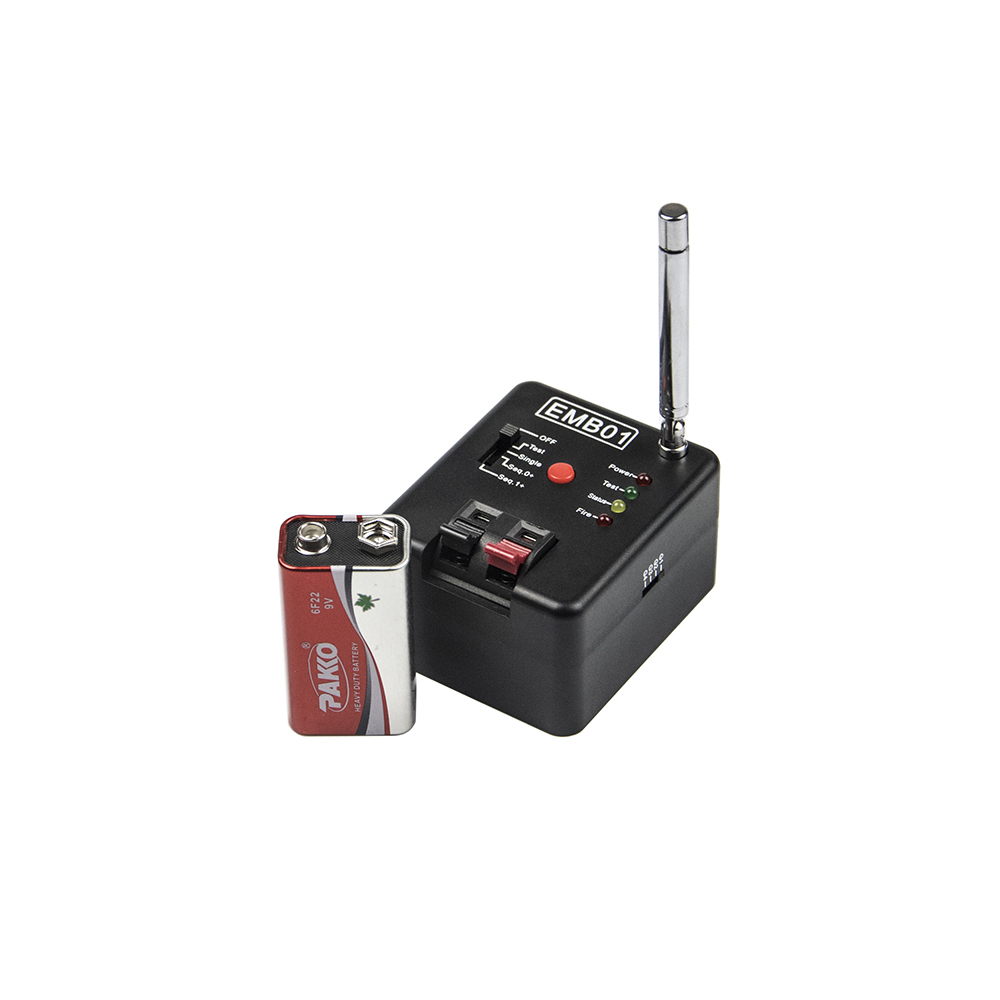

Power Supply : 9V battery
Transmitting Range: 100-1000m, according to the type of transmitter.
Frequency: OOK, 433MHz
Size: 60x50x47mm
